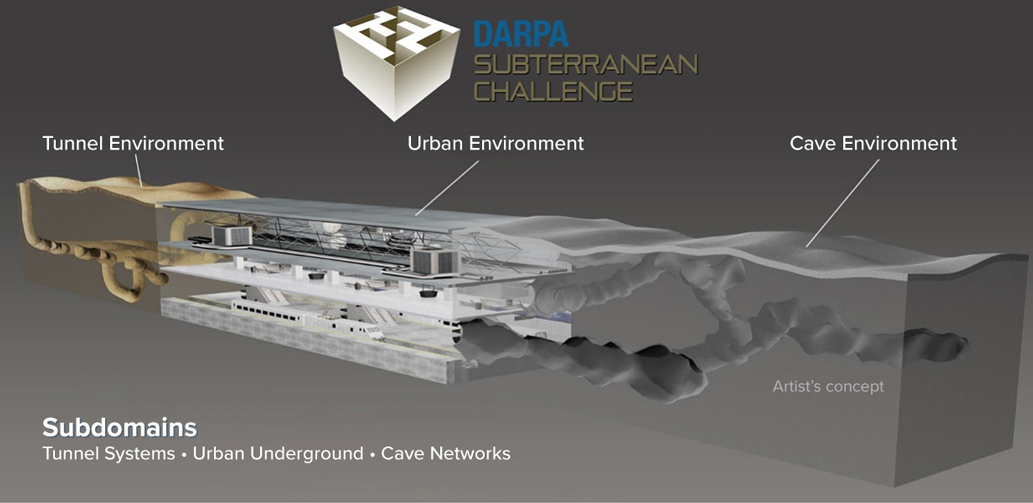

Participants in the DARPA challenge used teams of robots to explore a varied underground space that included tunnels, caves, and urban spaces such as subway stations. Credit: DARPA.

Quality Digest


Our PROMISE: Quality Digest only displays static ads that never overlay or cover up content. They never get in your way. They are there for you to read, or not.

DARPA challenged robotics researchers to develop teams of robots that could explore a complex underground space. Here’s a legged robot from the winning team, shown exploring a tunnel. Its legs cross uneven terrain more easily than previous versions.

However, someone has to pay for this content. And that’s where advertising comes in. Most people consider ads a nuisance, but they do serve a useful function besides allowing media companies to stay afloat. They keep you aware of new products and services relevant to your industry. All ads in Quality Digest apply directly to products and services that most of our readers need. You won’t see automobile or health supplement ads.

There are also robots that carry other robots. Flying robots tend to have relatively short battery lives, so rescuers can call on “marsupials”—wheeled, treaded or legged robots that carry the flying robots deep into the area to be explored, releasing them when there is a big space that needs to be mapped.

This autonomous team concept broke new ground in robotics, says Kostas Alexis, a roboticist at the Norwegian University of Science and Technology, whose team ultimately won the challenge. “The idea that you can do this completely autonomously, with a single human controlling the team of robots, just providing some high-level commands here and there… it had not been done before.”

One solution is to make sure the robots can communicate with one another. That allows a robot that’s gone deeper and lost radio contact with the surface to potentially relay messages through other robots that are still in touch. Robots could also extend the communications range by dropping portable radio relays, sometimes called “bread crumbs,” while on the move, making it easier to stay in contact with the controller and other robots.


Deep Underground, Robotic Teamwork Saves the Day

Deploying a motley crew of robots that can roll, walk, and fly is a smart strategy for search-and-rescue operations

“So it did a backflip, and it ended up crushing the drone on its back in the process,” Kottege says.

Operating in such places has proved difficult for robots. “You have mud, rock, rubble, constrained passages, large open areas…. Just the range and complexity of these environments present a lot of mobility challenges for robots,” says Viktor Orekhov, a roboticist and technical advisor to the Defense Advanced Research Projects Agency (DARPA), which has been funding research into the field.

Despite these difficulties, roboticists have made progress, says Orekhov, who co-authored an overview of their efforts in the 2023 Annual Review of Control, Robotics, and Autonomous Systems.

Quality Digest does not charge readers for its content. We believe that industry news is important for you to do your job, and Quality Digest supports businesses of all types.

The U.S. government’s Defense Advanced Research Projects Agency (DARPA) challenged robotics researchers to develop teams of robots that could explore a complex underground space. Here’s a legged robot from the winning team, shown exploring a tunnel. Its legs enable it to cross uneven terrain more easily. Credit: Robotic Systems Lab, Legged Robotics at Eth Zurich.

But as robots improve, teams of them may one day be able to go into a hazardous disaster site, locate survivors, and report back to their human operators with a minimum of supervision.

Ideally, underground robots should be able to explore autonomously, allowing them to work even when rock or other materials block radio contact with the surface. This video shows how robots can search and map an unknown space on their own and move through it safely. (Warning: This video has flashing lights.) Credit: Kostas Alexis.

When a Manhattan parking garage collapsed in April 2023, rescuers were reluctant to stay in the damaged building, fearing further danger. So they used a combination of flying drones and a doglike walking robot to inspect the damage, look for survivors, and make sure the site was safe for human rescuers to return.

Underground spaces are also dark and can be full of dust or smoke if they are the site of a recent disaster. Even worse, the rock and rubble can block radio signals, so robots tend to lose contact with their human controller the farther they go.

“There’s definitely lots more work that can and needs to be done,” Orekhov says. “But at the same time, we’ve seen the ability of the teams advanced so rapidly that even now, with their current capabilities, they’re able to make a significant difference in real-life environments.”

Published: Wednesday, August 23, 2023 – 12:02

Despite the robot dog falling over onto its side while walking over a pile of rubble—a moment that became internet-famous—New York mayor Eric Adams called the robots a success, saying they had ensured there were no overlooked survivors while helping keep human rescuers safe.

“The human support could kind of mark out an area in the map, and say, ‘This is a high-priority area, you need to go and look in that area,’” Kottege says. “This was very different from them picking up a joystick and trying to control the robots.”

One team, from Australia’s Commonwealth Scientific and Industrial Research Organisation (CSIRO), took this further by designing its robots to make decisions cooperatively, says Navinda Kottege, a CSIRO roboticist who led the effort. The robots themselves decided which tasks to undertake—whether to map a room, explore a corridor, or drop a communications node in a particular spot.

The robots also decided how to split up the work most effectively. If a rolling robot spotted a corridor that was too narrow to enter, a smaller walking robot could come and take over the job. If one robot needed to upload information to the base station, it might transmit it to a robot that was nearer to the entrance, and ask that robot to walk back to within communications range.

In 2017, DARPA funded a multiyear challenge to develop technologies for robots deployed underground. Participants, including engineers working at universities and technology companies, had to map and search a complex subterranean space as quickly and efficiently as possible.

Such teams of robots could be useful in other challenging environments, such as caves or mines where it can be difficult for rescuers to find and reach survivors. In cities, collapsed buildings and underground sites such as subways or utility tunnels often have hazardous areas where human rescuers can’t be sure of the dangers.

A team of robots also allows for different instruments to be used. Some robots might carry lights, others radar, sonar, or thermal imaging tools. This diversity enables different robots to see under varied conditions of light or dust. All of the robots, working together, provide the humans that deploy them with a constantly growing map of the space they are working in.

“There were some very interesting emergent behaviors. You could see robots swapping tasks amongst themselves based on some of those factors,” Kottege says.

There are still problems to overcome, Orekhov notes. For example, during the competition, many robots broke down or got stuck and needed to be hauled off the course after the event. After just an hour, most teams had only one or two functioning robots left.

To correct the problem, the team built a control system that lets the human operator decide on overall strategy, such as which parts of the course to prioritize, and then trusts the robots to make the on-the-ground decisions about how to get it done.

Even when communication is maintained, though, the demands of operating several robots at once can overwhelm a single person. To solve that problem, researchers are working on giving the robots autonomy to cooperate with one another.

Soon, rescuers may be able to call on a much more sophisticated robotic search-and-rescue response. Researchers are developing teams of flying, walking, and rolling robots that can cooperate to explore areas that no one robot could navigate on its own. And they are giving robots the ability to communicate with one another and make many of their own decisions independent of their human controller.
